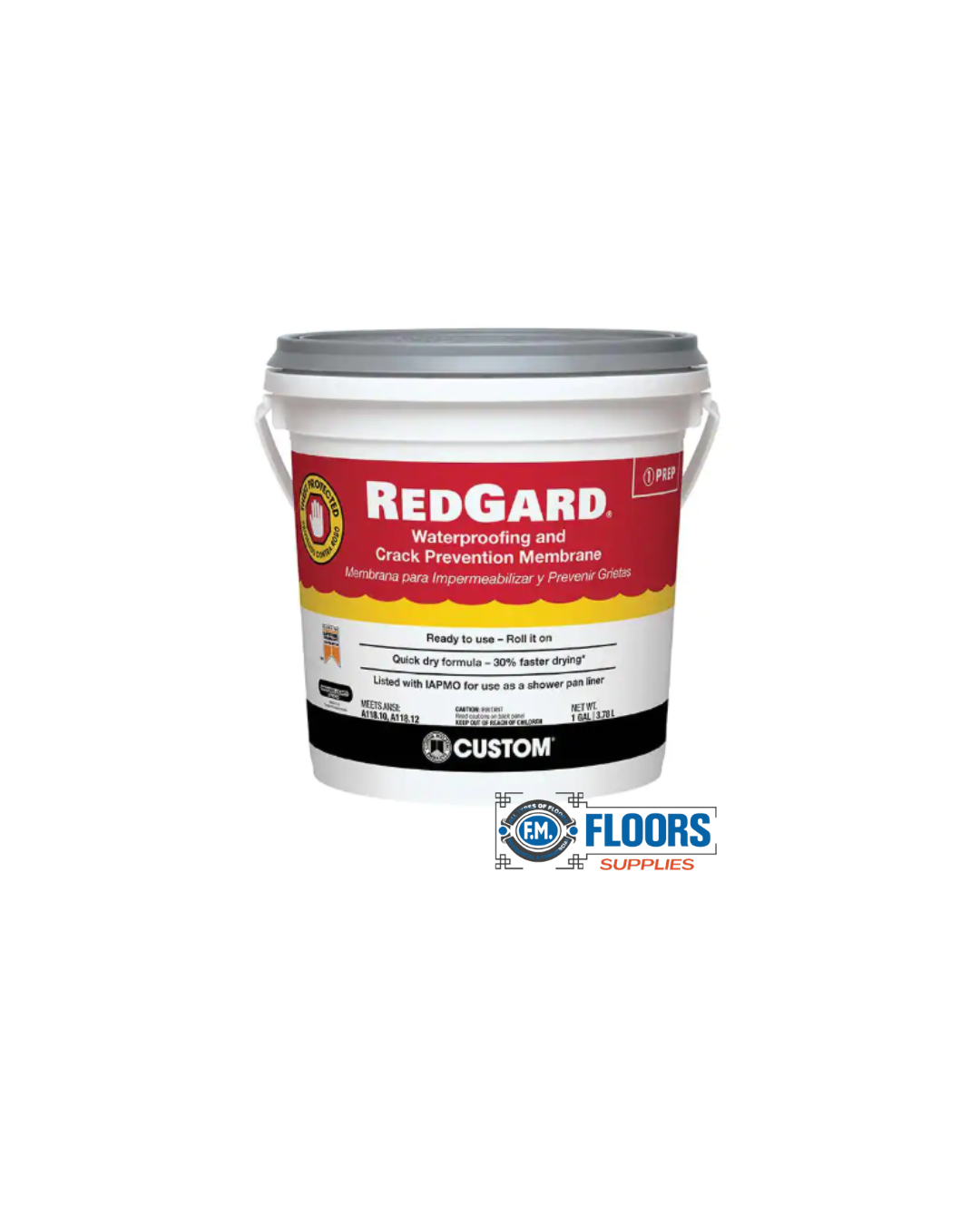

Custom Building Products RedGard 1 Gal. Waterproofing and Crack Prevention Membrane (UPC 010186771502) | FM FLOORS SUPPLIES

This layout balances a persuasive overview for DIYers with the hard technical facts that professional installers look for before making a purchase.

Product Overview Ensure a permanent, moisture-tight seal on smaller tiling projects with Custom Building Products RedGard 1 Gallon Waterproofing and Crack Prevention Membrane. Ideal for powder rooms, accent walls, kitchen backsplashes, and shower repairs, this ready-to-use elastomeric liquid creates a seamless, commercial-grade water barrier. RedGard isolates shrinkage cracks up to 1/8" (3 mm) to keep your subfloor movement from snapping or cracking your finished tile and stone layout. Formulated with rapid color-cure technology, the liquid changes from a wet pink to a solid, deep red when it is fully dry—taking the guesswork out of your installation timeline.

Why Professionals Choose RedGard:

• Advanced Color-Curing: Visually transitions from pink to a solid red so you know exactly when the surface is ready for thin-set and tile placement.

• Anti-Fracture Protection: Meets strict ANSI A118.12 standards to prevent substrate cracks from telegraphing up into your expensive ceramic or porcelain tile.

• Smooth, Multi-Surface Application: Easily roll, brush, or trowel over concrete slabs, cement backerboards, exterior-grade plywood floors, and existing masonry.

• MoldGard Technology: Specially engineered to resist mold and mildew growth at the subfloor level, protecting indoor air quality in high-moisture spaces.

Technical Specifications & Coverage:

• Brand: Custom Building Products (RedGard®)

• Container Size: 1 Gallon Pail

• UPC Barcode: 010186771502

• Manufacturer Part Number (MPN): LQWAF1-2 (LQWAF1)

• Dry Time: 60 to 90 minutes per coat

• Waterproofing Coverage: 35 to 40 sq. ft. (Requires a 2-coat application at a total of 30 mils wet thickness)

• Crack Isolation Coverage: Up to 110 sq. ft. (Requires a single coat application at 15 mils wet thickness)

• Code Compliance: Meets ANSI A118.10 (Waterproofing), ANSI A118.12 (Crack Isolation), and is IAPMO listed as an approved shower pan liner.
